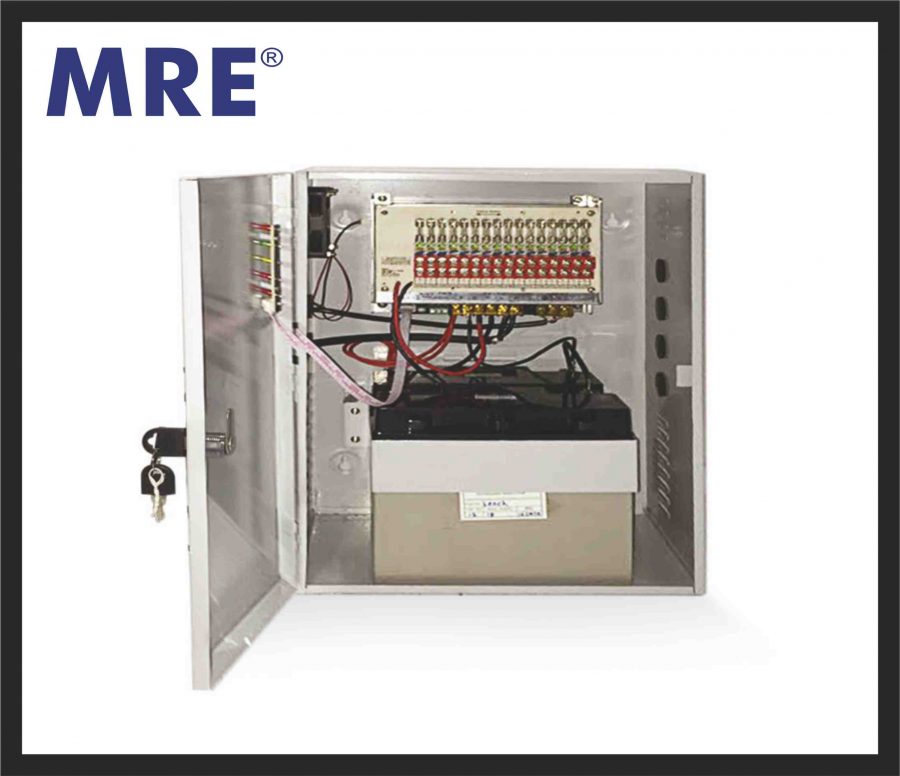

12V 20A For 16 Channel DVR SMPS + 16 CCTV SMPS +12V 17Ah

(3 customer reviews)

Model No.: MRE13e

  • Rated Output (Max):  13.8V/22A, 303W
  • Uninterruptible PSU
  • Metal Case With Key-lock
  • 80% High efficiency
  • Full Protection
  • No delay battery boot up.
  • 100% full load burn-in test
  • Works with different optional modules
12V 20A For 16 Channel DVR SMPS + 16 CCTV SMPS +12V 17Ah
  • MRE13e is a UPS power supply, its main output is 13.8V / 22A.
  • It also provides an extra maximum 0.7A charge current.
  • The PSU is designed based on the 303W level.
  • It can also be used for CCTV surveillance/access control/fire alarm and other security systems.
  • The input available for this model is 100VAC – 300VAC.
  • The input type is a 3 Pin cord.
  • The output type is 16 terminal + 16 fast blow glass fuse + 16MOV + 16 Power On LED indications.
  • It also consists of an Over-Load buzzer indication with wall mounting.
  • Consists of multiple LED indications.

FAQ

What is the purpose of a 12V 10A power supply with a 12V 7.2Ah battery for DVR and CCTV systems?
This power supply and battery combination is designed to provide consistent and uninterrupted power to an 8-channel DVR (Digital Video Recorder) and eight CCTV cameras. It ensures that your surveillance system remains operational even during power outages, allowing continuous monitoring and recording of security footage.

How long can the 12V 7.2Ah battery provide backup power to the DVR and CCTV cameras during a power outage?
The backup runtime of the 12V 7.2Ah battery depends on the power consumption of the connected devices and the capacity of the battery. To determine the exact backup duration for your specific setup, you’ll need to calculate the power draw of your DVR and CCTV cameras and compare it to the battery’s capacity.

Can I expand the backup runtime of this system by using a larger-capacity battery?
Yes, you can typically extend the backup runtime by using a larger capacity battery, provided that the power supply and connected devices can support it. Be sure to check the compatibility and specifications of the power supply, battery, and connected equipment to ensure proper operation.

Is there a specific setup or wiring configuration required for connecting the 8-channel DVR, 8 CCTV cameras, and the power supply/battery combination?
The wiring configuration may vary based on the specific equipment and setup. Generally, you will connect the DVR, CCTV cameras, and power supply to ensure all devices receive power. It’s advisable to follow the manufacturer’s instructions and consult with a professional installer to ensure proper wiring and configuration.

What safety features should I look for in a 12V 10A power supply and 12V 7.2Ah battery for surveillance systems?
When selecting a power supply and battery for surveillance systems, consider features such as overload protection, short-circuit protection, and overcharge protection for the battery. These safety features help prevent damage to the equipment and ensure safe and reliable operation.

Others
Model No. MRE13e
Output Voltage 12V
Input Voltage 100VAC-275VAC
Input Connector 3 Pin cord
Output Connector 16 Terminal + 16 ON/OFF + 16 Resettable Fuse + 16 Power on LED Indication.
Battery specification 12VDC 17 AH x 2 Inbuilt Batteries
LED Indication Power on & Battery Backup: bi-colour (Green & Red) LED indication. Battery Charge Yellow LED Indication Low Battery Red LED Indication & Cutoff at 10.5V.
Mounting wall mounting
Feature CCCV Circuit
Dimension 395mm(L) X 285mm(W) X 165mm(H).
Application CCTV DVR
