12V 10A For 8 Channel DVR SMPS + 8CCTV SMPS+12V 7.2Ah

12V 10A For 8 Channel DVR SMPS + 8CCTV SMPS+12V 7.2Ah

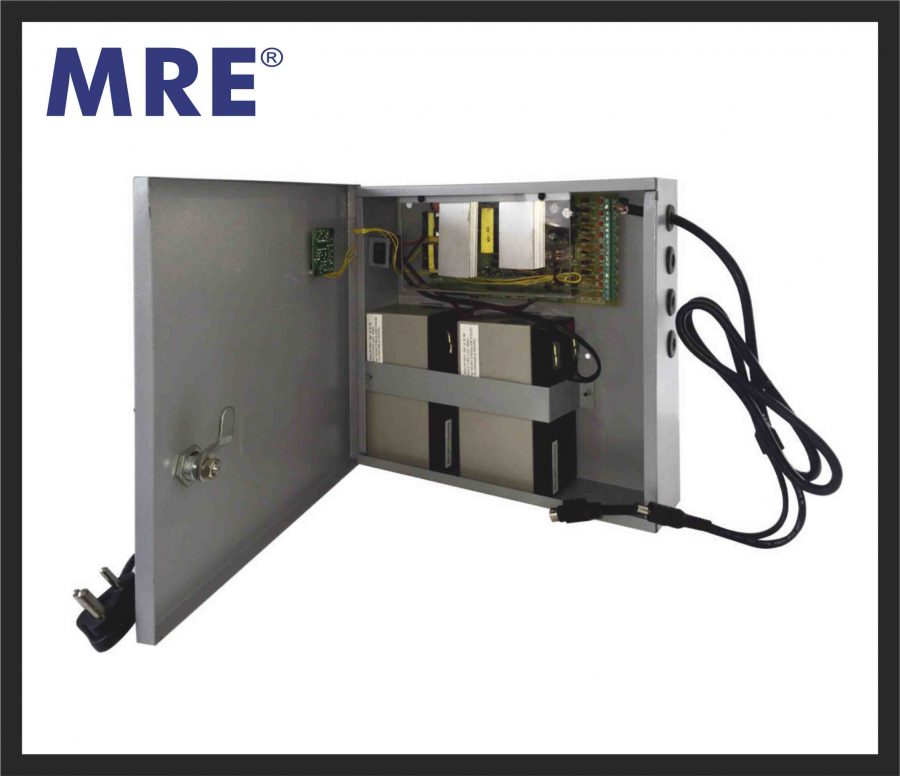

• MRE13d is a UPS power supply, its main output is 13.8V / 11A.
• It also provides an extra maximum 0.7A charge current.
• The PSU is designed based on the 152W level.
• It can also be used for CCTV surveillance/access control/fire alarm and other security systems.
• The input range available for this model is 100VAC-300VAC.
• The input available is a 3 Pin detachable cord.
• The output available is 8 terminal + 8 ON/OFF Plugs (short links) + 8 Resettable Fuse + 8 Power on LED indications.
• Also equipped with 5Kv Surge protection inbuilt.
• Wall mounting with multiple LED indications for better usage.

FAQ

What is the purpose of a 12V 10A power supply with a 12V 7.2Ah battery for DVR and CCTV systems?
This power supply and battery combination is designed to provide consistent and uninterrupted power to an 8-channel DVR (Digital Video Recorder) and eight CCTV cameras. It ensures that your surveillance system remains operational even during power outages, allowing continuous monitoring and recording of security footage.

How long can the 12V 7.2Ah battery provide backup power to the DVR and CCTV cameras during a power outage?
The backup runtime of the 12V 7.2Ah battery depends on the power consumption of the connected devices and the capacity of the battery. To determine the exact backup duration for your specific setup, you’ll need to calculate the power draw of your DVR and CCTV cameras and compare it to the battery’s capacity.

Can I expand the backup runtime of this system by using a larger-capacity battery?
Yes, you can typically extend the backup runtime by using a larger capacity battery, provided that the power supply and connected devices can support it. Be sure to check the compatibility and specifications of the power supply, battery, and connected equipment to ensure proper operation.

Is there a specific setup or wiring configuration required for connecting the 8-channel DVR, 8 CCTV cameras, and the power supply/battery combination?
The wiring configuration may vary based on the specific equipment and setup. Generally, you will connect the DVR, CCTV cameras, and power supply to ensure all devices receive power. It’s advisable to follow the manufacturer’s instructions and consult with a professional installer to ensure proper wiring and configuration.

What safety features should I look for in a 12V 10A power supply and 12V 7.2Ah battery for surveillance systems?
When selecting a power supply and battery for surveillance systems, consider features such as overload protection, short-circuit protection, and overcharge protection for the battery. These safety features help prevent damage to the equipment and ensure safe and reliable operation.
