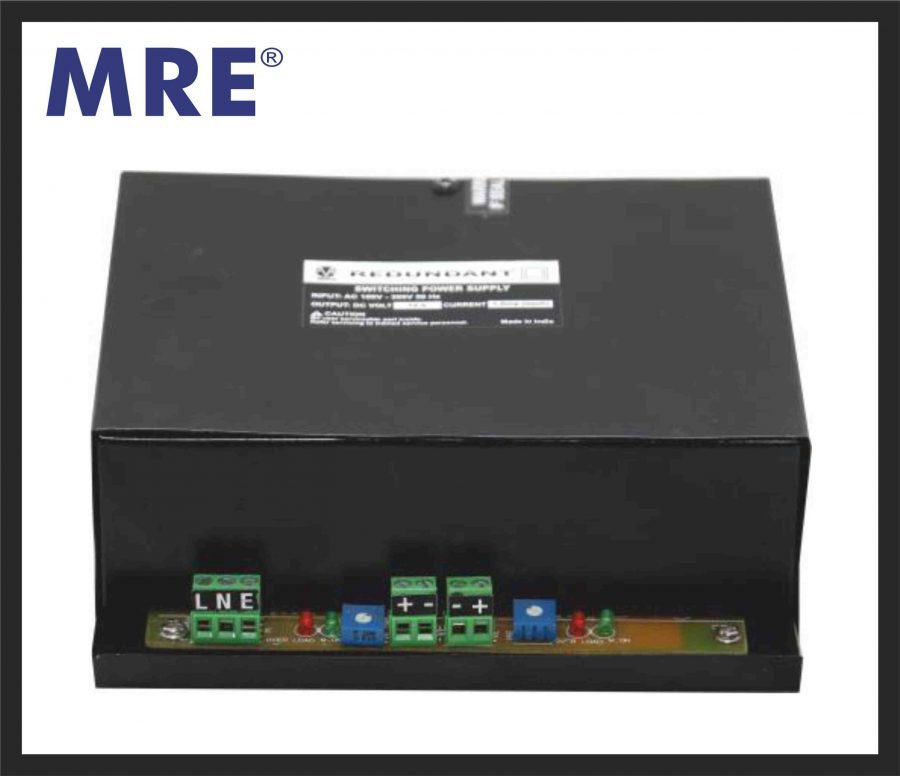

Redundant Power Supply – 12V 5-7A

(3 customer reviews)

  • 2VDC / 5 to 7Amp for 8 CCTV Cameras in Metal Cabinet.
  • Input: 100VAC – 300 VAC.
  • Input Connect 3 Pin cord on LNE.
  • 2 Terminal

Redundant Power Supply – 12V 5-7A

  • The word redundant means twice or doubled or backed up if one power supply fails the other will pick up or start automatically.
  • Also, depending upon the cable length, the output voltage of 11V – 15V is preset to adjust Voltage.
  • The CCTV Circuit Current limit is set at 5.7 Amp.
  • LED light indications – Green LED light for Power On, Red LED light for indicating Overload.
  • Also, there are 2 Red LED lights that glow initially.
  • In case of power supply failure, only 1 Red LED light will glow.
Others
Model No. MRE17a
Output Voltage 12VDC / 5 to 7Amp for 8 CCTV
Input Voltage 100VAC – 300 VAC.
Input Connector 3 Pin cord on LNE
Output Connector 2 Terminal
LED Indication 2 RED LED's given when connected both the LED's will glow in case of failure of 1 power supply 1 LED will Switch off.
Mounting Wall Mounting Bracket
Feature CCCV Circuit Current Limit at 5.7 Amp.
Dimension 157mm(L) X 131mm(W) X 60mm (H).
