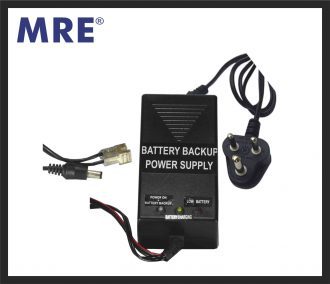

Power Supplies for Access Control and Magnetic Lock- Option 3

  • 12VDC / 2Amp to 3.5 Amp Battery Backup
  • Input: 100VAC – 300VAC
  • Input 3 Pin cord
  • Output Terminal or cable
Power supplies for Access Control and Magnetic lock – Option 3
  • A 12V DC/ 2.5Amp to 3.5Amp Battery Backup (internal battery model)
  • Also available in a metal cabinet.
  • Input available in 3 Pin cord.
  • Also available in an Output of cable or terminal.
  • Comes in a Wall mounting bracket.
  • Also comes with multiple LED indications for easy usage.
  • Designed to provide all the power requirements for access control and magnetic lock.
  • Comes in a wide AC input range of 100VAC – 300VAC.
  • Also made to withstand the adverse Indian power conditions.
Others
Model No. MRE12b
Output Voltage 12VDC / 2.5 Amp to 3.5 Amp
Input Voltage 100VAC – 300 VAC
Input Connector 3 Pin cord
Output Connector Output Cable or Terminal.
Battery specification 12VDC 7.2 AH SMF Battery.
LED Indication Power on & Battery Backup: bi-colour (Green & Red) LED indication. Battery Charge Yellow LED Indication Low Battery Red LED Indication & Cutoff at 10.5V.
Dimension 174mm(L) X 137mm(W) X 115mm(H)
