24 volt battery backup fire alarm

Battery backup for Fire alarm – Option 2

  • 24 VDC / 5Amp Battery backup
  • Input: 100VAC-300VAC
  • Input 3 pin cord on LNE
  • Output 3 terminal
Categories: ,

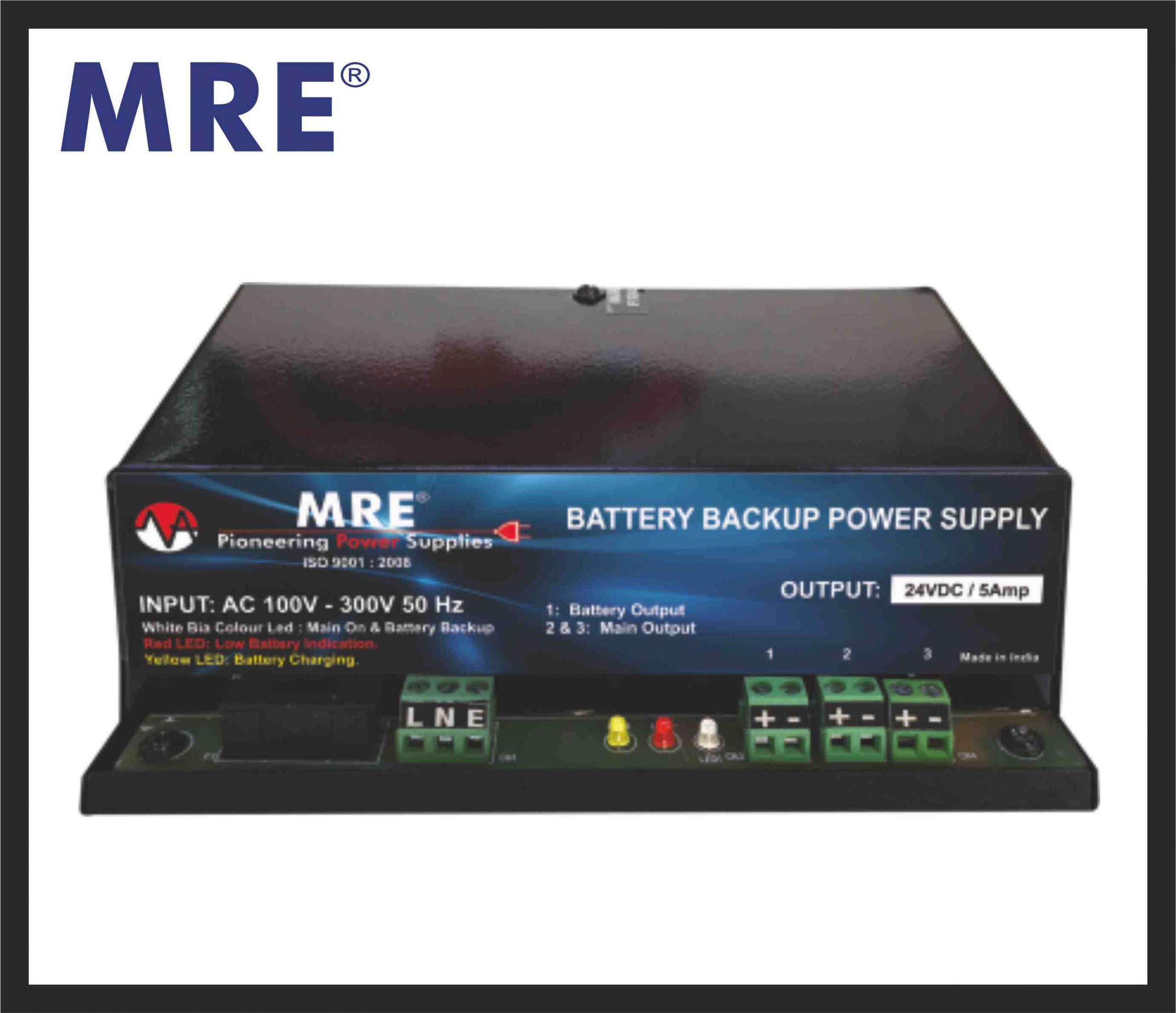

Battery backup for Fire alarm – Option 2
  • A 24VDC/5Amp Battery backup for the external model.
  • Comes in a wide input range of 100VAC – 300VAC.
  • Has a 3 Pin cord on LNE input connect.
  • Also has an output of 3 terminal.
  • Terminal 1 – Battery Output, terminal 2 & 3 Main output.
  • Also has a wall mounting bracket available.
  • Battery specification – 12VDC 7.2 AH X 2 SMF Battery connecting series.
  • Designed to provide all the power requirements for battery backup for the Fire alarm.
  • Also made to withstand the adverse Indian power conditions.
  • Comes with multiple LED indications for easy usage.
Others
Model No. MRE16d
Output Voltage 24VDC / 5Amp
Input Voltage 100VAC – 300 VAC.
Input Connector 3 Pin cord on LNE
Output Connector t 3 Terminal Terminal 1: Battery Output Terminal 2 & 3: Main Output
Battery specification 12VDC 7.2 AH SMF Batteries in series
LED Indication Power on & Battery Backup: bi-colour (Green & Red) LED indication.
Mounting Wall Mounting Bracket
Dimension 170mm(L) X 103mm(W) X 70mm(H).
